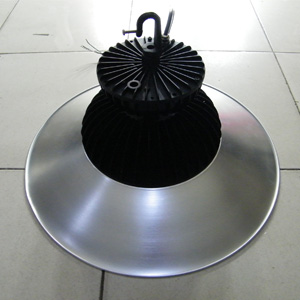

Extra accessories for led high bay lights,your best choice.
Aluminum shield (Anti-glare cover )
Acrylic diffuser (elegant performance )
Adjustable Bail for Surface Mounting (easy to install)
If you want to know more, you can send email to us : savingledlight@gmail.com.
| Housing | ||
| Matertial | Aluminum | |
| Cover | milky/clear | |
| Finish Color | White/Silver | |
| Light | ||
| Model | PL600x300-22W | |
| Lumens | 1650lm(white)/ 1550lm(neutral white)/ 1150lm(warm white) | |
| Color Temp. | 3000/4200/6000K | |
| CRI | 80 | |
| Beam angle | 120° | |
| LED Driver | ||
| Type | Outer Driver | |
| Watts. | 22W | |
| Voltage | DC 24V | |
| Current | 650mA | |
| Dimming function | Yes | |
| Size | ||
| Size | 595×295×10.2 mm | |
| IP Rate | ||
| IP Rate | IP52 | |
| Part No. | TRP1404-1560W |
| Specifications | |
| Color | WW ;PW ;CW |
| Color Temp(Kevin) | 3000-4500K;4500-6000K;>6000K |
| Lumen(lm) | 5500~6600 LM |
| CRI(Ra) | 70~85 |
| Wattage (w) | 60 |
| Beam Angle | 120° |
| Power supply | Internal AC90~265V |
| Lamp base | N/A |
| Dimmable | under developing |
| Dimension (mm) | 1500*91*74 |
| LED Type | SMD 2835 |
| LED Qty | 336 |
| Housing | AL housing+PC cover+AL board |
| Optics( Cover) | Clear or milky |
| Applications | Indoor or outdoor |
$5.50 $2.20
The
LED bulbs deliver up to 480 lumens of warm 2700K light or cool 6500K
light, while consuming at least 84% less energy than the incandescent
bulbs they replace. These lamps feature a consistent and balanced
omnidirectional light source within a real glass bulb, turn on
instantly.and are designed to last 35,000 hours.
|

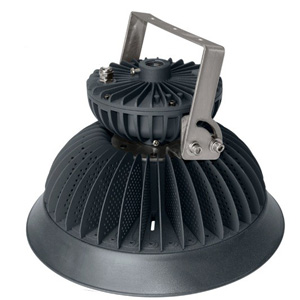

Specifications |
|
|
Color : |
Cool white |
|
Color Temp : |
6000K |
|
Lumen(lm) : |
7000/10000/12000 |
|
Wattage (w) : |
80/100/120 |
|
CRI(Ra) :: |
75 |
|
Beam Angle : |
100º |
|
LED Type : |
Patent design SMD LEDs |
|
Power supply : |
Internal driver AC100-300V |
|
Power factor: |
>0.95 |
|
Dimming : |
0-10V (upon request*) |
|
Dimension (mm) : |
Φ320*265 |
|
Lifetime : |
35,000 hours |
|
Installation : |
Suspending |
|
Housing : |
Aluminum alloy |
|
Finish : |
Powder coated black color |
|
Optics( Cover) : |
Clear(transparent lens) |
|
IP rating: |
IP65 |
*Note: dimmingcable is not installed and must be specified at order,
connector is provided according to costumer´s request
Packing information:
|
Fixture weight : |
5 kg |
|
Carton size : |
35*35*28cm |
LED Tri-proof lamp
Features:
1. Patent designwith simple and nice appearance.
2. High lumen outputand impressive light uniformity.
3. Reliable thermalperformance and built- in LED driver, lifespan over 35,000H
4. Widely used inparking lots/warehouse/railway/farm/factory etc.
|
Model |
Watts. |
Volts |
Lumens |
CRI |
Beam angle |
size(mm) |
Dimmable |
|
GG-SFD25W |
25W |
AC100-240V |
1900 |
70+ |
120° |
600*110*86 |
Upon request |
|
GG-SFD50W |
50W |
AC100-240V |
4000 |
70+ |
120° |
1200*110*86 |
Upon request |
|
GG-SFD65W |
65W |
AC100-240V |
5100 |
70+ |
120° |
1530*110*86 |
Upon request |
|
GG-SFD88W |
88W |
AC100-240V |
6700 |
70+ |
120° |
1865*110*86 |
Upon request |
Remark: IP65 degree, aluminum plate and imported plastic material
Color Temp(Kevin):2700-6500K
Optics( Cover): Clear or milky
