| Model | Specificatie | |||||||
| Dimensie | Rated power | Ingangsspanning | Machtsfactor | THD | Color Temp(K) | CRI | lichtstroom | |
| T805-M018S50 T805-T018S50 |
1200mm*Ø26mm | 18In | AC220~240V 50~60Hz | 0.95 | 15% | 3000/4000/5000/5700 | 83 | frosted lens: 1800lm heldere lens: 1950lm |
Kenmerken:
Meer dan 60% energiebesparend
Hoge CRI waarde: RA83
5 jaar garantie
| Model | Specificatie | |||||||
| Dimensie | Rated power | Ingangsspanning | Machtsfactor | THD | Color Temp(K) | CRI | lichtstroom | |
| T805-M014S50 | 900mm*Ø26mm | 14In | AC220~240V 50~60Hz | 0.9 | 15% | 3000/4000/5000/5700 | 83 | frosted lens: 1400lm |
Kenmerken:
Meer dan 60% energiebesparend
Hoge CRI waarde: RA83
5 jaar garantie
| Model | Specificatie | |||||||
| Dimensie | Rated power | Ingangsspanning | Machtsfactor | THD | Color Temp(K) | CRI | lichtstroom | |
| T805-M010S50
T805-T010S50 |
600mm*Ø26mm | 10In | AC220~240V 50~60Hz | 0.9 | 15% | 3000/4000/5000/5700 | 83 | frosted lens: 950lm heldere lens: 1000lm |
Kenmerken:
Meer dan 60% energiebesparend
Hoge CRI waarde: RA83
5 jaar garantie
PIR sensor-based led tube light
Kenmerken:
• Work with high performance PIR Sensor
• Lasting time of lighting can be customized
• Delay shutdown time:0’~120′ adjustable
• Energy-saving up to 60%
• Waterproof IP50 degree
•Fantastic aluminum heat sink construction
• lifespan: 5 jaar
• Moisture-proof.
• Wide voltage and constant current design
• EC,RoHS,FCC,ETL,UL Listed
• Rated to Operate from -20°C to 45°C, Perfect for Environments with Extreme Climates
Other features:
Instant on, no flicker of buzz
Suitable for existing linear fixtures.
Solid State, High Shock/Vibration Resistant
Simple to replace original fluorescent lamp
geen UV,No RF Interference, Mercury Free
3years guarantee- we will take care of repairing even out of the time
Product lijst
|
T10 LED tube light with PIR SENSOR |
|
|
|
|
|
|||
|
Model |
Watts. |
Volt |
Color Temp(K) |
Lumens |
Base |
CRI |
Kijkhoek |
Grootte(mm) |
|
T100610 |
10 |
AC100-277V |
3000K/4500K/6000K |
800-1100lm |
G13 |
75+ |
170 |
600*30 |
|
T100914 |
14 |
AC100-277V |
3000K/4500K/6000K |
1050-1400lm |
G13 |
75+ |
170 |
900*30 |
|
T101218 |
18 |
AC100-277V |
3000K/5000K/6000K |
1500-1900lm |
G13 |
75+ |
170 |
1200*30 |
|
T101522 |
22 |
AC100-277V |
3000K/5000K/6000K |
1750-2250lm |
G13 |
75+ |
170 |
1500*30 |
|
Neem dan contact met ons op voor meer product lijst |
|
|
|
|
|
|||
Dimensie:Diametre(mm)
Installation instruction:
Houd er rekening mee dat:
*Do not install the product in original emergency light fixtures
*Do not install the product in complete insulated ceilings
Application area:
Idea for corridor, basement, magazijn, Gallery, School, University, etc.

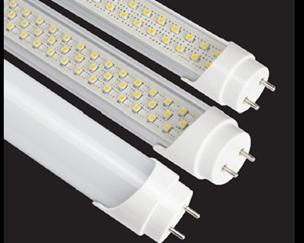

LED tube : from 8w to 35w; from 600mm to 2400mm; EC,TUV,ROHS,VDE,UL,ETL approval.
With very sensible prices
Kenmerken:
Energy Efficiency: Type. Up to 105lm/w
Original high quality leds ensure the long working time
Meet the LM-70/LM-79 testing standard
Outstanding PC cover guarantees 90% lighting transmission
Rotatable end-cap design make the lighting direction adjustable from 0~180°
Fantastic heat sink construction by using high quality aluminum housing and PCBs
Other features:
Instant on, no flicker of buzz
Suitable for existing linear fixtures.
Simple to replace original fluorescent lamp
Mercury free-healthy and safe for application
3years guarantee- we will take care of repairing even out of the time
Belangrijkste product lijst
—TUV,VDE,EC,ROHS approval product list
|
Model |
Watts. |
Volt |
Color Temp(K) |
Lumens |
Base |
CRI |
Stralingshoek |
Grootte(mm) |
|
T80608 |
8 |
AC 90-277V |
3000K/5000K/6000K |
750-1100lm |
G13 |
75+ |
120 |
600*26 |
|
T80610 |
10 |
AC 90-277V |
3000K/5000K/6000K |
850-1300lm |
G13 |
75+ |
120 |
600*26 |
|
T80915 |
15 |
AC 90-277V |
3000K/5000K/6000K |
1300-1500lm |
G13 |
75+ |
120 |
900*26 |
|
T81218 |
18 |
AC 90-277V |
3000K/5000K/6000K |
1500-1800lm |
G13 |
75+ |
120 |
1200*26 |
|
T81220 |
20 |
AC 90-277V |
3000K/5000K/6000K |
1800-2200lm |
G13 |
75+ |
120 |
1200*26 |
|
T81228 |
28 |
AC 90-277V |
3000K/5000K/6000K |
2500-2750lm |
G13 |
75+ |
120 |
1200*26 |
|
T81525 |
25 |
AC 90-277V |
3000K/5000K/6000K |
2200-2600lm |
G13 |
75+ |
120 |
1500*26 |
|
T81530 |
30 |
AC 90-277V |
3000K/5000K/6000K |
2800-3200lm |
G13 |
75+ |
120 |
1500*26 |
|
Neem dan contact met ons op voor meer product lijst |
|
|
|
|
|
|||
|
Model |
Watts. |
Volt |
Color Temp(K) |
Lumens |
Base |
CRI |
Stralingshoek |
Grootte(mm) |
|
T90608 |
8 |
AC 90-277V |
3000K/5000K/6000K |
750-1100lm |
G13 |
75+ |
120 |
600*28 |
|
T90610 |
10 |
AC 90-277V |
3000K/5000K/6000K |
850-1300lm |
G13 |
75+ |
120 |
600*28 |
|
T90915 |
15 |
AC 90-277V |
3000K/5000K/6000K |
1300-1500lm |
G13 |
75+ |
120 |
900*28 |
|
T91218 |
18 |
AC 90-277V |
3000K/5000K/6000K |
1500-1800lm |
G13 |
75+ |
120 |
1200*28 |
|
T91220 |
20 |
AC 90-277V |
3000K/5000K/6000K |
1800-2200lm |
G13 |
75+ |
120 |
1200*28 |
|
T91228 |
28 |
AC 90-277V |
3000K/5000K/6000K |
2500-2750lm |
G13 |
75+ |
120 |
1200*28 |
|
T91525 |
25 |
AC 90-277V |
3000K/5000K/6000K |
2200-2600lm |
G13 |
75+ |
120 |
1500*28 |
|
T91530 |
30 |
AC 90-277V |
3000K/5000K/6000K |
2800-3200lm |
G13 |
75+ |
120 |
1500*28 |
|
Neem dan contact met ons op voor meer product lijst |
|
|
|
|
|
|||
Opmerking:
*Environment Temperature: -20~+50℃
*Environment Humidity: <95%

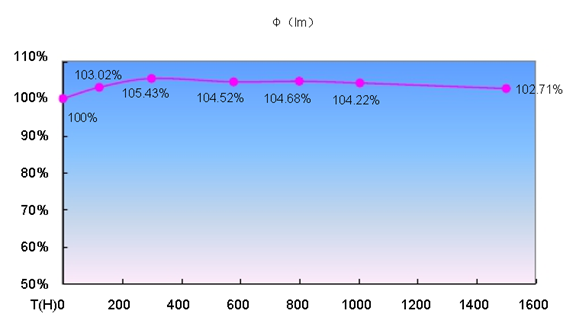

Lumen in the first 1600hrs
|
|
|

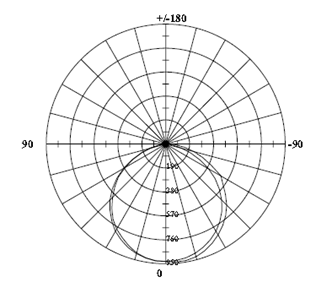

*Please contact us for more files of light distribution and intensity
Verpakking informatie
|
Inpakken-T8 led tube |
||||||||
|
Tube size(mm) |
Carton size(mm) |
Q’ty per carton(pcs) |
G. W. per carton(kg) |
|||||
|
600*26 |
670*220*220 |
25 |
7.8 |
|||||
|
900*26 |
990*220*220 |
25 |
12.5 |
|||||
|
1200*26 |
1290*220*220 |
25 |
14 |
|||||
|
1500*26 |
1590*220*220 |
25 |
17.5 |
|||||
|
Inpakken-T9 led tube |
||||||||
|
Tube size(mm) |
Carton size(mm) |
Q’ty per carton(pcs) |
G. W. per carton(kg) |
|||||
|
600*26 |
670*220*220 |
25 |
7.9 |
|||||
|
900*26 |
990*220*220 |
25 |
13 |
|||||
|
1200*26 |
1290*220*220 |
25 |
14.5 |
|||||
|
1500*26 |
1590*220*220 |
25 |
18 |
|||||
Application area
Huis, stores, manufacturing facilities, hallways,etc.
